MQV-2/2 D Channel foot

Rail support MQV-2/2 D-14 #369639

Configurator
Technical Data
Documents
Features & Applications
Related Products
CG002857_v1 (203701)
IS_ME_232.eps

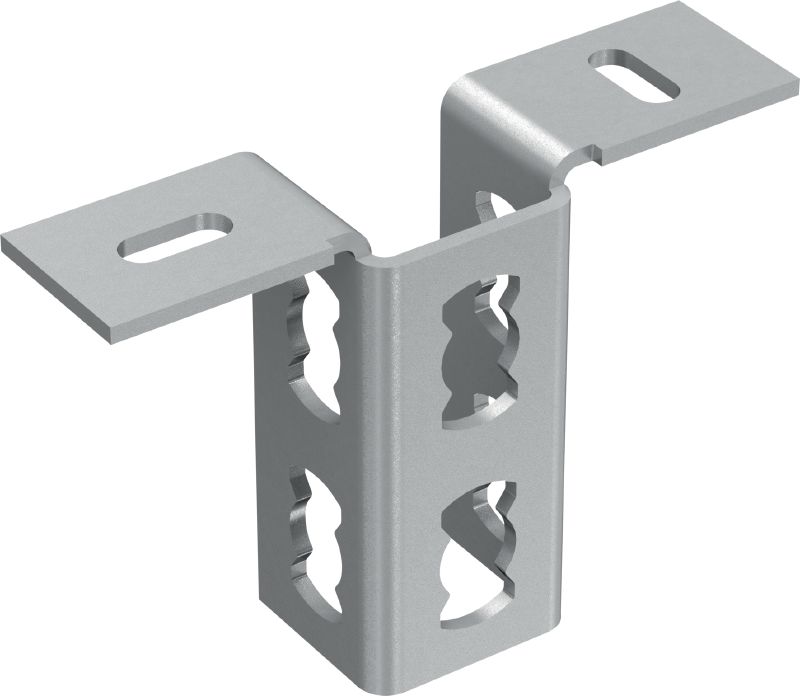

Galvanised channel foot for fastening channels to concrete

  • Material composition: S235JR - DIN EN 10025
  • Surface finish: Indoor Coated - Electro galvanised
  • Material thickness: 4 mm

Customers also searched for rail supports, connecting channel to concrete floors, glavanised connectors, connectors or metal connectors.

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Packs
Total Pieces
10
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
QAR 540.50
QAR 54.05 / 1 each

Technical Data

Details
Technical illustrations
Material composition
S235JR - DIN EN 10025
Surface finish
Indoor Coated - Electro galvanised
Material thickness
4 mm
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
420 g

Documents

pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • Adjustable – easily fit and repositioned along strut channels
  • Compatible with push button channel connectors – for much faster, adaptable assembly

Applications

  • Connecting strut channels to various base materials
  • Compatible with multiple MQ strut channels
  • Recommended for use in dry, interior environments
