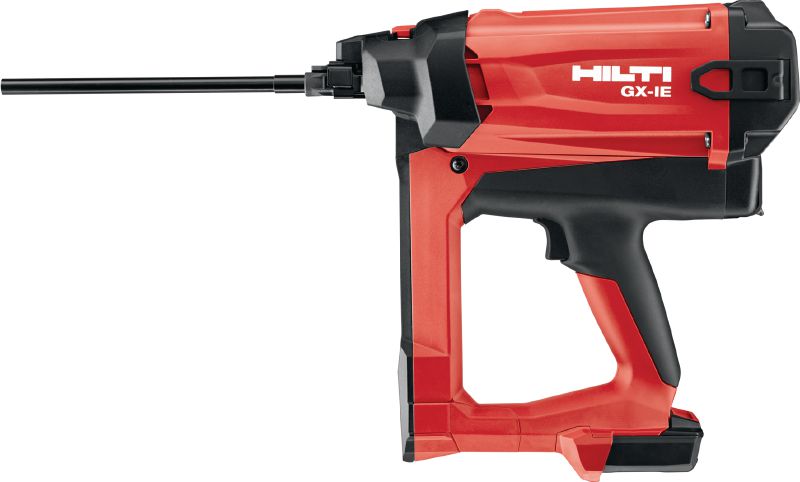

GX-IE Gas-actuated insulation nailer
Gas nailer for insulation fastening on soft and some tough concrete and cold-formed steel studs (insulation board thickness 25-150 mm| 1" – 5 7/8")
- Fastener intake: Single
- Fastener length range: 25 - 150 mm
- Power source type: GC 52 Gas can
Technical Data
Fastener intake
Single
Fastener length range
25 - 150 mm
Power source type
GC 52 Gas can
Power (max.)
100 J
Features & Applications
Features
- Quick and easy fastening method for insulation applications – up to five times quicker than conventional methods
- Short and comfortable stroke (20 mm │ 3/4") with low recoil, reducing fatigue, especially in overhead applications
- Cordless tool platform – the same battery for all 12V Hilti tools
- Excellent battery reach – 5,000 nails per charge, with a charging time of just 30 minutes
- Excellent gas can reach – more than 800 shots per gas can
Applications
- One system that fastens mineral wool, EPS, XPS, PIR and PUR to soft and some tough concrete and cold-formed steel stud

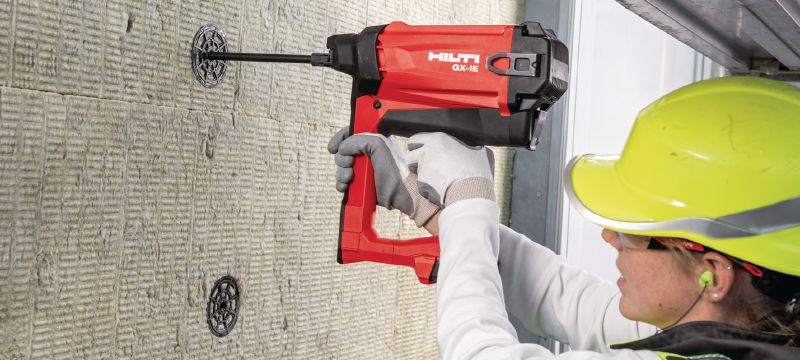

- Suitable for fastening insulation material to wall and ceiling.
- Suitable for fastening insulation material in light ventilated façade (LVF) application

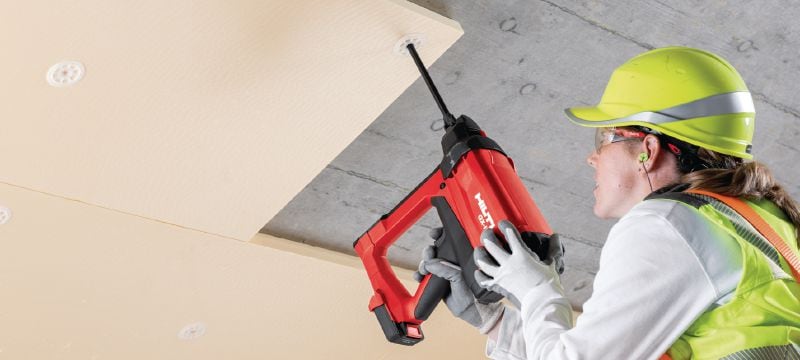

- Suitable for fastening insulation material to the bottom of concrete slab (ceiling)

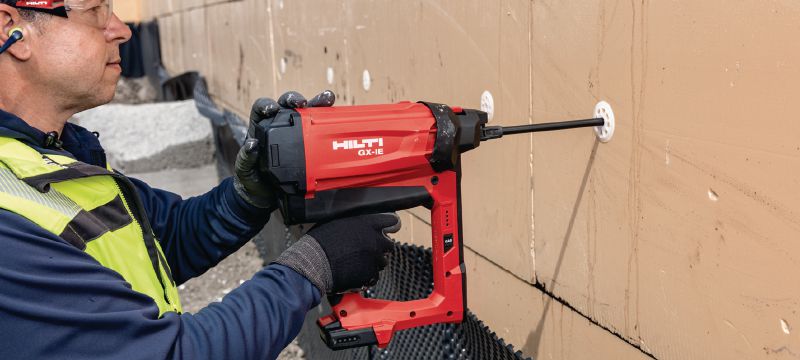

- Fastening basement perimeter wall insulation (foundation wall)
For approval or certificate information, please see individual items.
Related Products
Insulation fasteners pre-mounted with X-P G2 high-performance nails for fastening mineral wool, EPS, XPS, PIR, PUR, wood-wool and fiber-cement faced boards, to soft concrete and to masonry
