TE 30-M AVR Rotary hammer

25676.tif
25672.tif
25673.tif

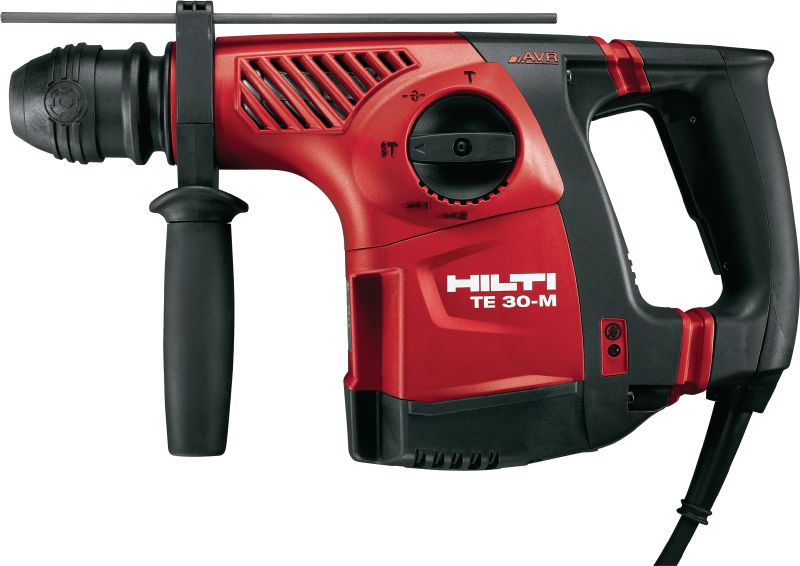

TE 30-M-AVR

Powerful SDS Plus (TE-C) rotary hammer for heavy-duty concrete drilling and corrective chiselling, with Active Vibration Reduction (AVR)

  • Weight according to EPTA-Procedure 01/2003 without battery: 4.4 kg
  • Optimum hammer drilling range: 10 - 28 mm
  • Single impact energy: 3.3 J

Customers also searched for TE-C, hammerdrill or SDS.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
QAR 8,093.08
QAR 8,093.08
/
1 each

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
4.4 kg
Optimum hammer drilling range
10 - 28 mm
Single impact energy
3.3 J
Working mode
Hammer drilling, Drilling, Chiselling
Hammer drilling diameter range
5 - 28 mm
Hammer drilling RPM
750 rpm
Full hammering frequency
4080 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
12 m/s² 1
Triaxial vibration for chiselling in concrete
12 m/s² 2
A-weighted emission sound pressure level
90 dB (A) 3
Dimensions (LxWxH)
379 x 93 x 213 mm
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Features & Applications

Features

  • SDS Plus (TE-C) rotary hammers for all-round use, with 2nd gear and chiselling function
  • Optimum speed even under high load thanks to constant-speed electronics – speed is maintained automatically
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Superior working comfort thanks to perfect balance, low weight, compact design and low vibration
  • Ruggedly built from high-grade materials and components for unbeaten, extra-long lifetime

Applications

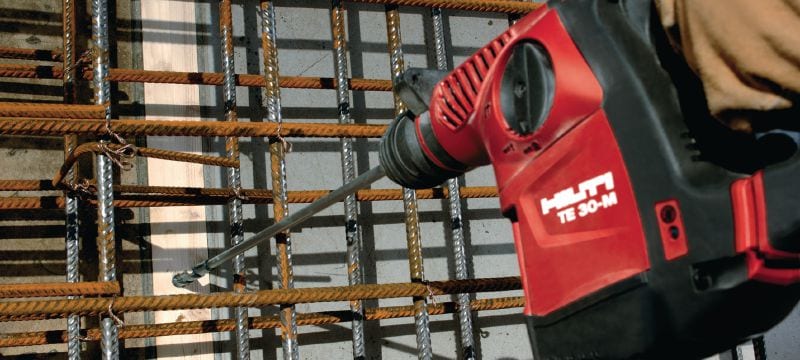

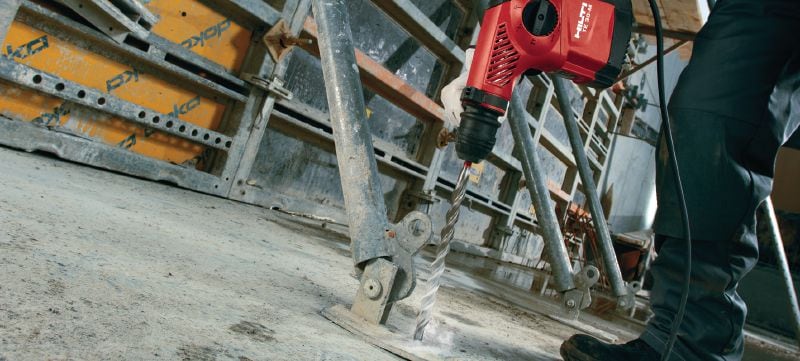

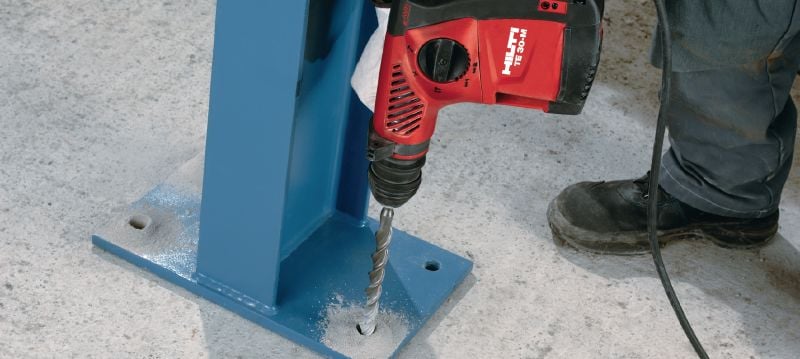

  • Drilling anchor holes and through-holes in concrete and masonry, diameter range 4-28 mm, recommended range 8-20 mm
  • Socket cutting in concrete and masonry using percussion core bits (66-82 mm diameter), in brickwork and sand-lime block using diamond socket cutters (66-82 mm diameter), in wood and plasterboard panels using hole saws (35-105 mm diameter)
  • Drilling in wood with 10-35 mm diameter formwork / installation bits
  • Mixing applications, e.g. paint, plaster, etc.
  • Drilling in wood and metal using the keyless chuck and drill bits with smooth shank up to 13 mm diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • After the no-cost period, repair costs are capped
  • Product warranty against parts and manufacturing irregularities for as long as we service the tool
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

LifeTime Services

  • No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
  • After the no-cost period, repair costs are capped for as long as we service the tool
  • 3-month no-repair-cost period again after every paid repair
  • Materials and workmanship warranty over the entire life of the tool
  • Pick-up and delivery service
More information about LifeTime Services
