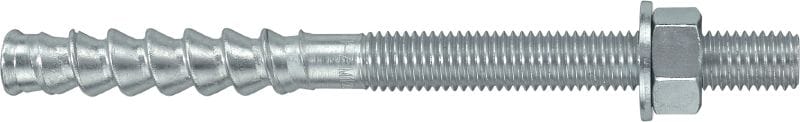

HIT-Z Anchor rod

Ultimate-performance anchor rod for injectable hybrid anchors (carbon steel)

Material, corrosion: Carbon steel, zinc-plated
Environmental conditions: Dry indoor
Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for anchor rods, anchors rods for cracked concrete, anchors rods for uncracked concrete, rods for anchoring or anchoring.

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Environmental conditions

Dry indoor

Base materials

Concrete (cracked), Concrete (non-cracked)

PROFIS software

Yes

Approvals / test reports

ETA, ICC-ES report (concrete), Seismic

Cleaning procedures

Non-cleaning

Type of fastening

Pre-fastening, Through-fastening

Documents

Features & Applications

Features

Suitable for very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
No hole cleaning required (above 5°C/ 41°F) with HIT-HY 200
More reliable and productive solution thanks to potential elimination of the hole cleaning process
Variable depth of embedment to fully utilise the anchor capacity
Head marking for easy verification of rod length, even after installation

Applications

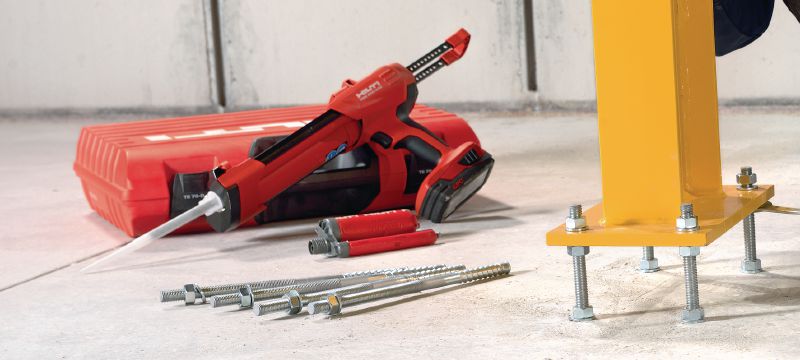

Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)

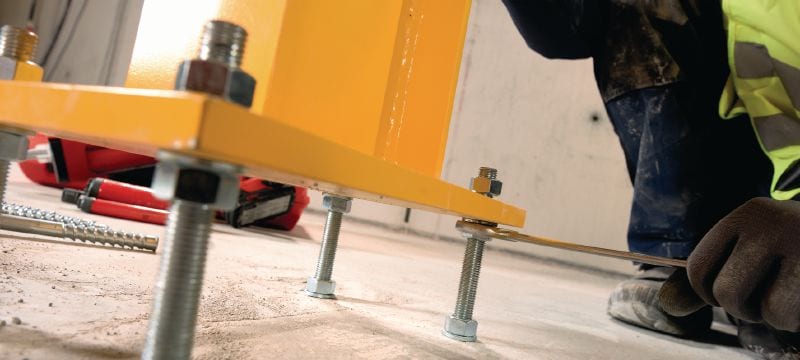

Anchoring structural steel connections (e.g. steel columns, beams)
Anchoring secondary steel structures (e.g. racking, guard rails, sound barriers)
Anchoring safety barriers, balustrades, fire escape staircases

For approval or certificate information, please see individual items.
